ELECTRIC MOTORS (ABB)

 Sumiko Enterprises





     PLANETARY  GEAR MOTOR

                      PLANETARY CREEP DRIVE

FOOT MTD. PLANETARY GEAR BOX

PLANETARY AGITATOR GEAR BOX

ACS 150 (ABB)

Output Power : 0.37 kW to 4 kW / 0.5 HP to 5 HP
Voltage : 1Ø : 200 to 240 V
Current : 1.2 to 4.1 A
Voltage : 3Ø : 380 to 480 V
Current : 1.2 to 8.8 A

HELICAL/BEVEL GEARBOX


Case hardened & Profile ground Steel
Gears with inclined tooth to transmit the
torque between parallel shafts with

minimum noise.
Range
Power range upto 5500 KW
Reduction Ratio range upto 650/1

BEVEL HELICAL COOLING TOWER GEARBOX

Case Hardened and Lapped steel spiral bevel gears to transmit the torque between
Right Angle shaft. Unicase design with Pumpless Lubrication and three-point Foundation.

Range : Power range up to 600 kW. Reduction                  Ratio up to 20.9 : 1
Sizes : From 140 mm to 450 mm center distance
Type : 'PC' Series and 'RC' Series
Applications : Cooling Tower and Heat                                      Exchanger Application
Industries : Sugar, Cement, Paper, Solvent                            Extraction, Plastic, Steel,
                   Power Plants, Mineral Processing

STD. SOLID FOOT WORM GEAR BOXES


The important features include high eciency and load carrying
capacity combined with long life and reliable service.
Range : Power range up to 250 kW Reduction Ratio range up to 4900 : 1
Sizes : Upto 710 mm center distance
Type : Under Driven / Over Driven / Vertical Units in
Single & Double reduction
Applications : Conveyor, Material Handling, Ball Mill,
Agitators, Cranes
Industries : All Process Industries

'ALM SERIES' ALTRA WORM GEARBOX

Die-cast Aluminium case, worm gear units with electric motor/

mechanical varitor in double stage suitable for power upto 15 kW

Range : Power range from 0.06 kW up to 7.5 kW Ratio                    range from 7.5 : 1 up to 1600 : 1
Sizes : Center Distance from 30 mm up to 130 mm
Type : Worm - Available in Foot & Flange mounted versions
Application : Conveyors, Packaging, Loading, Automation
Industries : Material Handling, Pharma, Packaging, Food
Processing etc.

SUPER A” SERIES HELICAL GEARED MOTOR (PBL)

PBL also manufactures state-of-the-art Helical Geared Motors, Motor Mount Reducers and Inline Gear Reducers with solid and hollow input shafts, under the license agreement with a renowned Japanese manufacturer Seiki Kogyosho Limited (SKK) (now taken over by Sumitomo Heavy Industries).  Foot/flange mounted Geared Motors, solid input shaft inline Gear Reducers and Motor Mount Reducers with Hollow Input Shaft are available in the range of 0.4 kw to 11.0 kw and having ratio from 5:1 to 200:1.  The units are suitable to accommodate “IEC” frame 3-phase, 4 pole AC induction motors.

SALIENT FEATURES:

 Stylish Design,   Compact & Light Weight,   Reduction in mounting dimensions,    Low noise & vibration,    Simple to assemble & dismantle,    Each unit tested under air pressure to ensure leakproofness,    Factory filled long lasting EP grease as lubricant.

EXTRUDER GEARBOX

• Single Screw Extruder GHE Series - Extruder Gearbox
• Range:Power range upto 250 KW. Reduction ratio upto 25.6/1
• Applications: Plastic Extrusion, PVC Extrusion & Cable Extrusion

IE2 ENERGY EFFICIENT MOTORS (ABB)

Output Power : 0.37 to 400 KW / 0.5 HP to 535 HP
Frame size : 71 to 400
Number of poles : 2,4 & 6
Voltage : 415 V ;220....690 V.
Frequency : 50Hz +/-5%
Protection: IP 55

INVERTER DUTY MOTORS (ABB)

Output Power : 5.5kW to 700 kW / 7.5 HP to 935 HP
Frame size : 132 to 400
Voltage : 415V +/-10%,
Frequency : 50HZ+/-5%

CRANE DUTY MOTORS (ABB)

Output Power : 0.37kW to 30KW / 0.5 HP to 40 HP
Frame size : 71-200
Number of Poles : 4, 6 & 8 pole
CDF (Cyclic duration Factor ) : 25%,
40%, 60%, 100%
Starts-Stops/hr : 60, 150 , 300

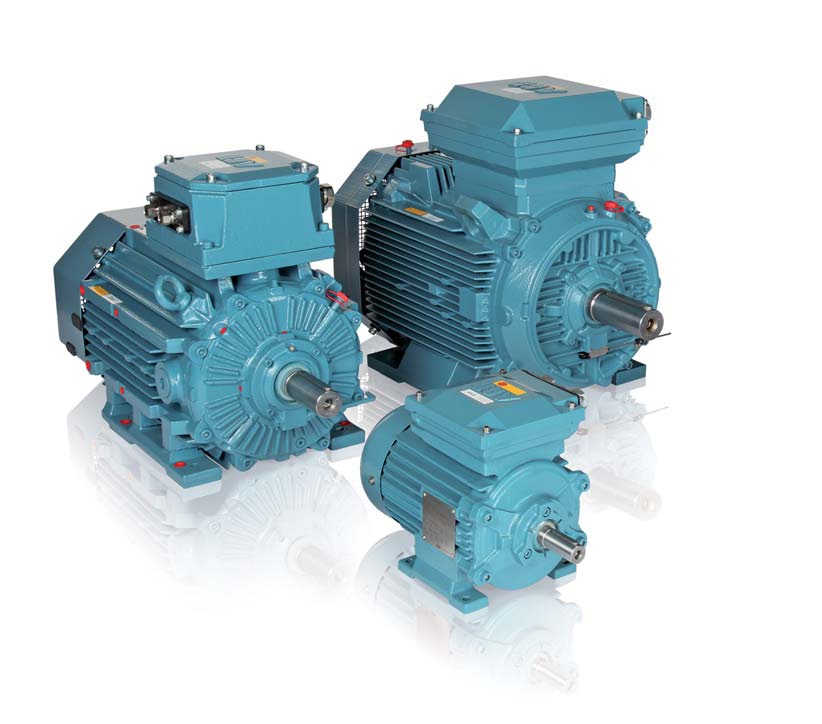

FLAME PROOF MOTORS (ABB)

Output power : 0.37 kW to 30 kW / 0.5 HP to 40 HP
Frame size IEC : 71 to 200
Number of poles 2,4,6 & 8
Voltages : All commonly used voltages
Frequency 50 Hz +/-5%
Protection IP 55 or better

Protection type For zone 1 or 2

BRAKE MOTORS (ABB)

Output Power : 0.055 kW to 22 kW / 0.075 HP to 30 HP
Frame size : IEC 63 to 180
Number of poles : 2,4,6 & 8
Voltages : Wide voltage range up to 690 V
Frequency : 50 or 60 Hz
Protection : IP 55

STANDARD AC MOTORS (ABB)

Output Power : 0.06kW to 90 kW / 0.8 HP to 120 HP
Frame size : IEC 56 to 250
Number of poles : 2,4,6 & 8
Voltages : All commonly used voltages
Frequency : 50 or 60 Hz +/-5%
Protection : IP 55
